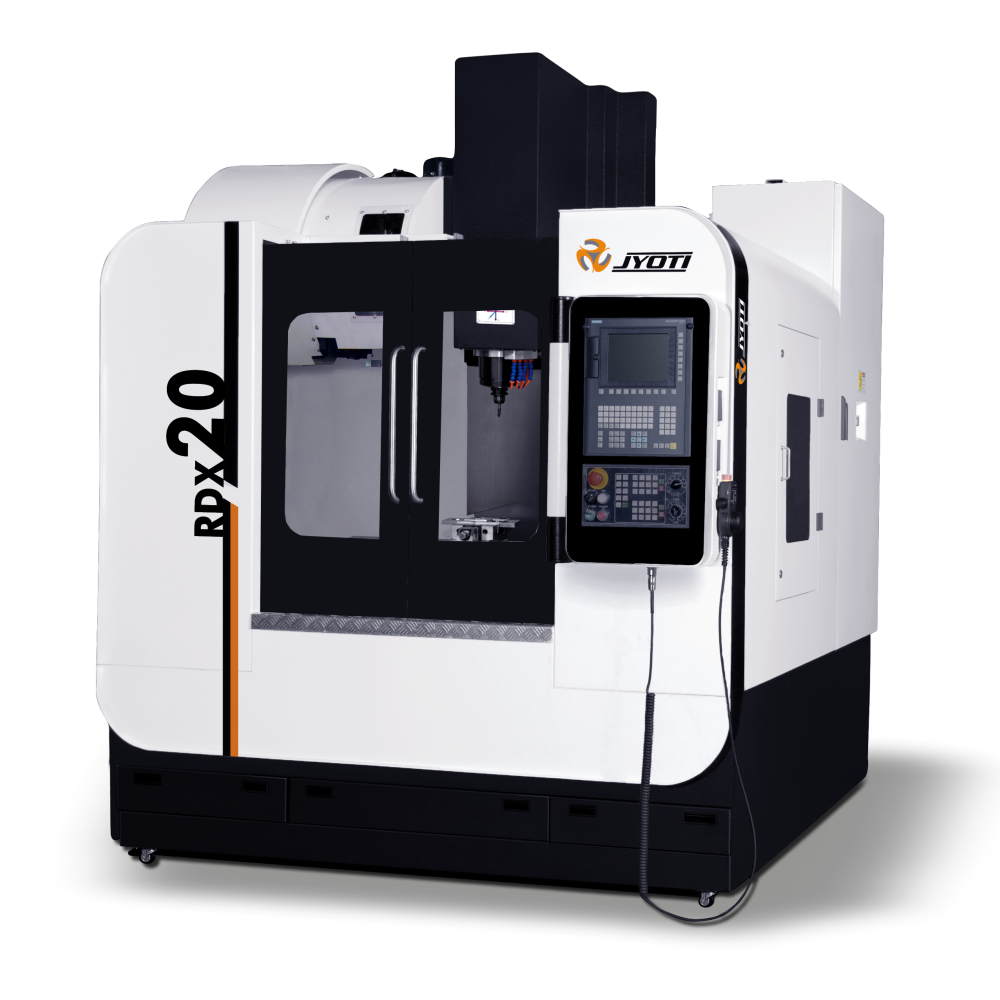

RD X SERIES CNC VMC

Name: RD X SERIES CNC VMC
Brand: JYOTI CNC AUTOMATION LTD.

Get a Price/Quote

MOQ : 1 Number

RD X SERIES CNC VMC Specification

Product Type
VERTICAL MACHINING CENTER

General Use
Metal and Non-metal Cutting

Material
Other

Type
Other

Capacity
450 kg Kg

Weight (kg)
3200 kg Kilograms (kg)

Computerized
Yes

Bar Feeder
No

Power Source
Electric

Power Consumption
15 HP Horsepower (HP)

Voltage
415 V Volt (v)

Table Size
800 x 420 mm

Spindle Speed
8000 RPM RPM

Axial Choice
X/Y/Z Axis

Dimension (L*W*H)
2500 x 1800 x 2200 mm Millimeter (mm)

Feature
High Speed & High Precision, Linear Guideways

Color
White

Positioning Accuracy
0.005 mm

Control System
Siemens / Fanuc / Mitsubishi (Option)

Travel (X/Y/Z)
740 x 420 x 510 mm

Lubrication System
Automatic Lubrication

Coolant System
Yes, Full Enclosure

Rapid Traverse Rate
36/36/30 m/min (X/Y/Z)

Spindle Taper
BT40

Max Table Load
450 kg

Repeatability
0.003 mm

Tool Change Time
2.5 sec (tool to tool)

Tool Magazine Capacity
20 Tools

Min Increment
0.001 mm

RD X SERIES CNC VMC Trade Information

Minimum Order Quantity
1 Number

Supply Ability
10 Per Month

Delivery Time
1 Week

About RD X SERIES CNC VMC

Jyoti has specially developed RDX Series for die-moulds application with greater accuracy. Robust single piece base and broader column structure made up of graded cast iron for better vibration damping. Rigid saddle provides excellent stability during high cutting condition and heavy weight components. The series finds wide spread applications to get the pace with growing die-mould market.

Precision and Productivity in One Machine

The RDX SERIES CNC VMC is designed to elevate manufacturing standards with its high-speed linear guideways and precise operations. Capable of handling workpieces up to 450 kg, its advanced control systems and rapid tool change time (just 2.5 seconds) ensure minimized downtime and maximum throughput. Whether for prototyping or large-scale manufacturing, this machining center guarantees accuracy and consistency with every cycle.

Adaptable Control Systems

Choose from leading CNC control options-Siemens, Fanuc, or Mitsubishi-to best fit your workflow requirements. Each system ensures intuitive operation, robust PLC functionality, and seamless integration with existing factory processes. Supported by a computerized interface and full enclosure for safety, users benefit from both cutting-edge technology and operator comfort.

Designed for Durability and Versatility

Constructed from high-quality cast iron and finished in durable white, the RDX SERIES VMC is engineered to withstand demanding environments. Its automatic lubrication, advanced coolant system, and servo-driven movements not only extend the machine's lifespan but also deliver exceptional performance for both metal and non-metal materials, including complex contouring and intricate components.

FAQ's of RDX SERIES CNC VMC:

Q: How does the RDX SERIES CNC VMC ensure high-precision machining?

A: The machine achieves high precision through linear guideways, a servo-driven system, and advanced computerized control (Siemens, Fanuc, or Mitsubishi), delivering positioning accuracy of 0.005 mm and repeatability of 0.003 mm. This ensures consistent, optimal results even for complex parts.

Q: What materials and industries can benefit from this VMC?

A: The RDX SERIES CNC VMC is suitable for both metal and non-metal cutting, making it ideal for use in automotive, aerospace, electronics, mold making, and general engineering industries that require high-speed, high-precision production.

Q: When is automatic tool changing performed, and what is the time required?

A: Automatic tool changing is completed during machining cycles as dictated by the programmed sequence. The advanced magazine allows for a swift tool-to-tool change in just 2.5 seconds, reducing downtime and boosting productivity.

Q: Where can I install the RDX SERIES CNC VMC, and what are the space requirements?

A: With dimensions of 2500 x 1800 x 2200 mm, the machine is suitable for installation in standard industrial workshops. Ensure you have adequate floor space and appropriate electrical arrangements (415 V, 15 HP supply) for optimal setup and safe operation.

Q: What is the process for routine maintenance on this machine?

A: Routine maintenance mainly involves checking the coolant and lubrication systems, cleaning the enclosure, and inspecting linear guideways. Thanks to its automatic lubrication and fully enclosed design, routine upkeep is straightforward and minimizes machine downtime.

Q: How does the computerized PLC control enhance usability?

A: The inclusion of a computerized PLC control system (supporting Siemens, Fanuc, or Mitsubishi) makes operation easier, offers user-friendly programming, improves error detection, and streamlines integration with other factory automation processes.

Q: What benefits does the high rigidity structure offer?

A: High rigidity-provided by a robust cast iron frame and precision engineering-minimizes vibrations during intensive cutting, improves machining accuracy, and ensures consistent long-term performance for demanding production environments.
