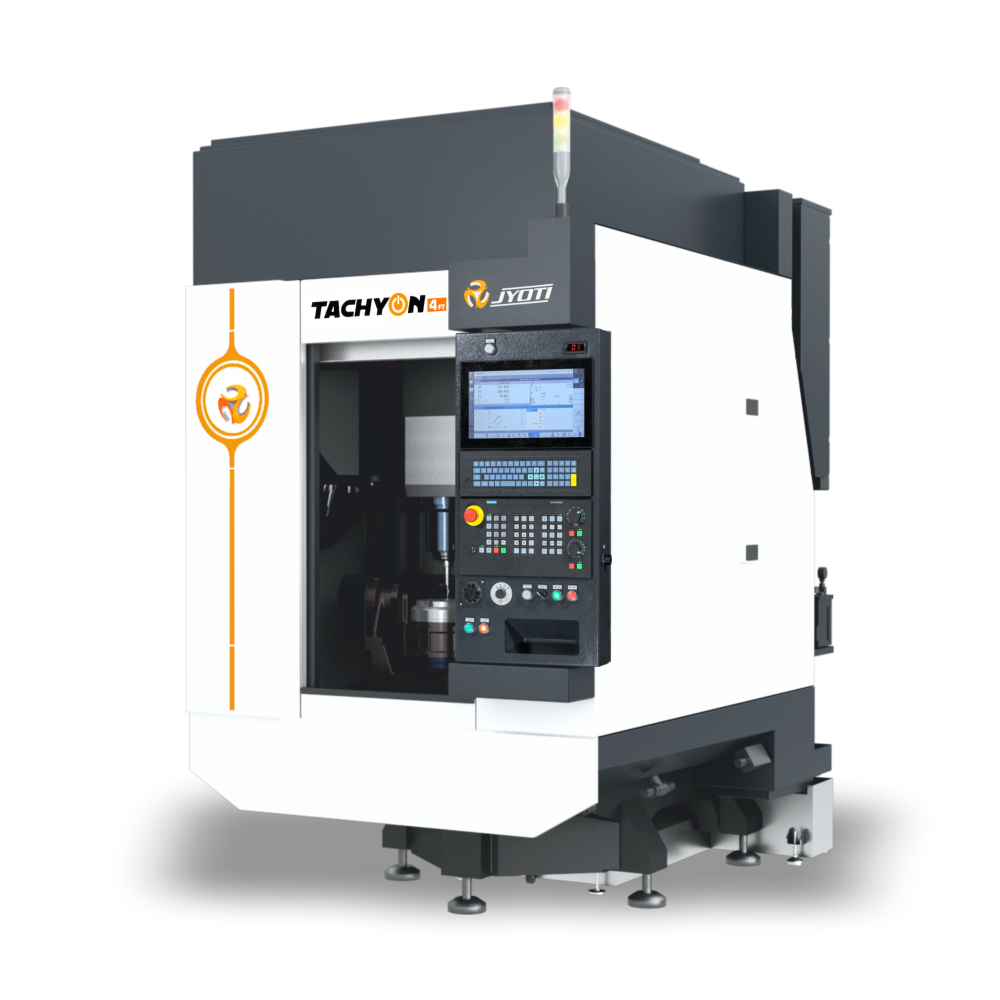

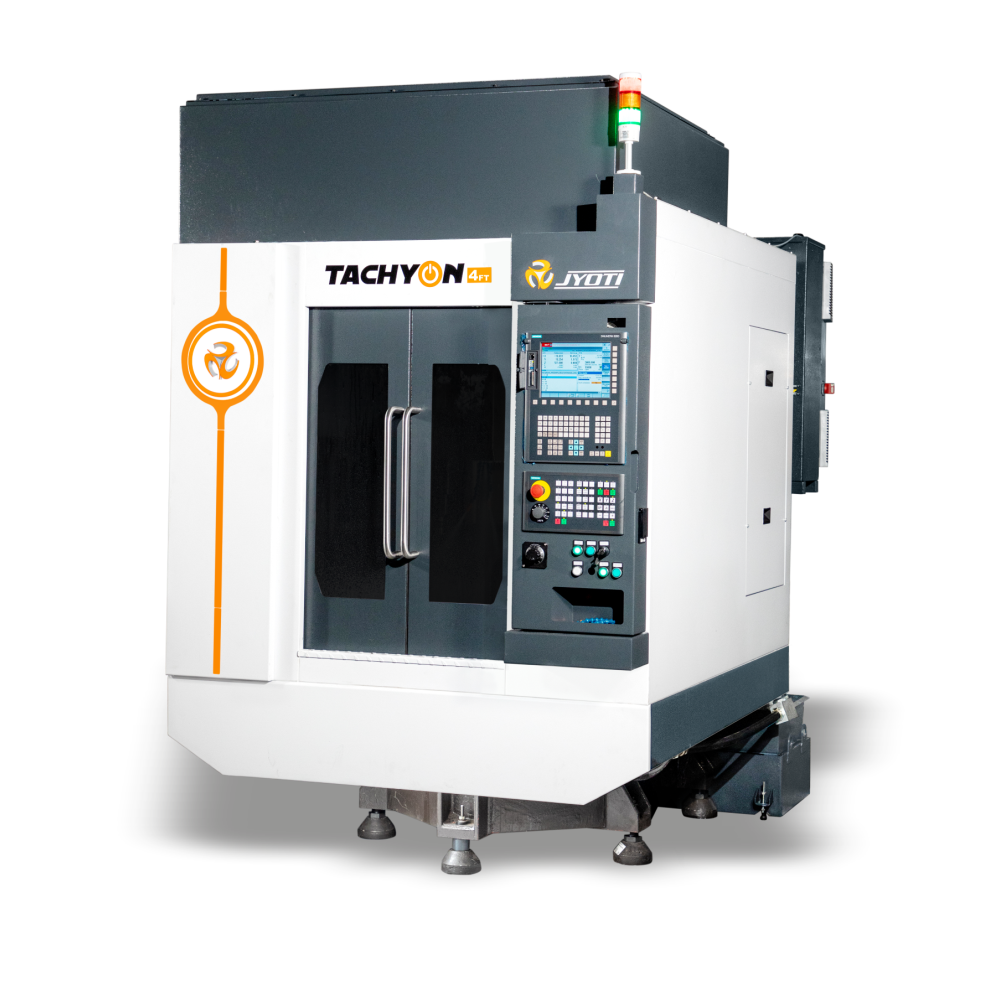

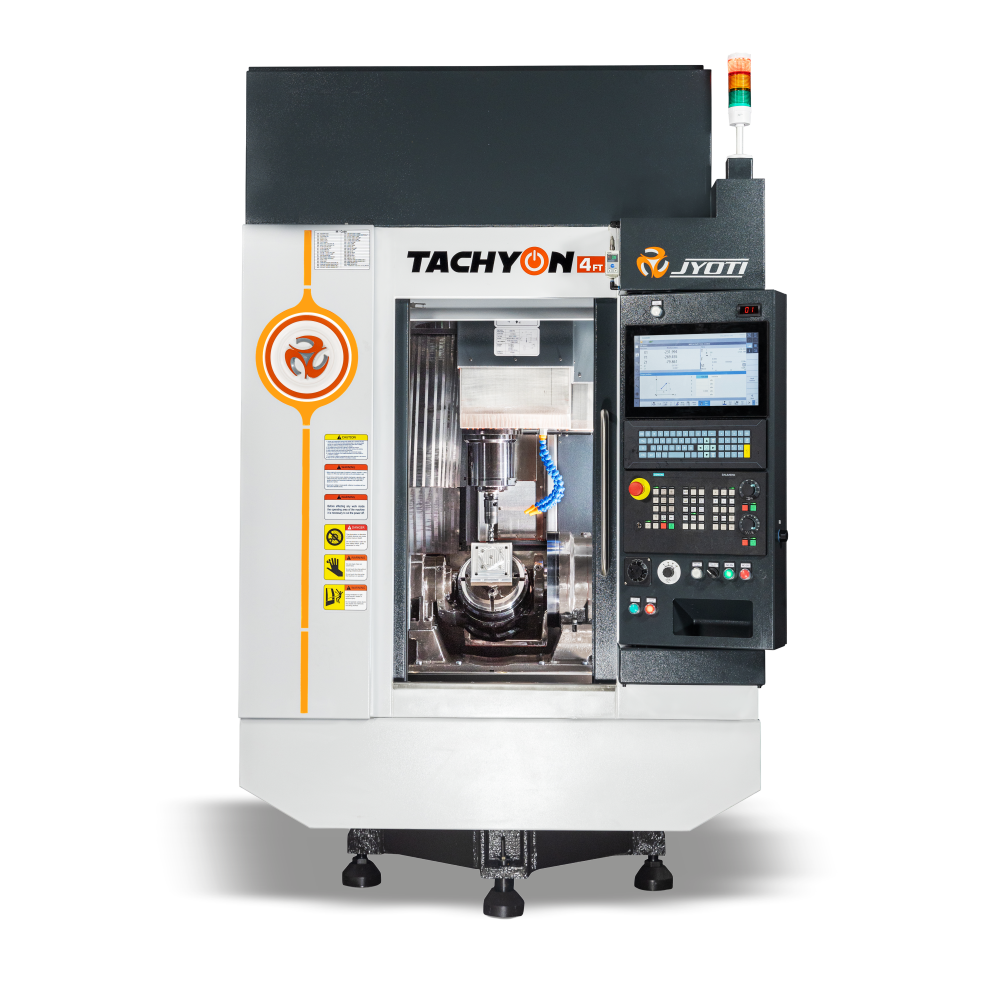

TACHYON FT SERIES CNC VMC

Name: TACHYON FT SERIES CNC VMC
Brand: JYOTI CNC AUTOMATION LTD.
Price: 3874997.0 INR
Availability: InStock

Price 3874997.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

TACHYON FT SERIES CNC VMC Specification

Product Type
VERTICAL MACHINING CENTER

General Use
Industrial CNC Machining

Material
Cast Iron Body

Type
CNC VMC

Capacity
500 kg Table Load

Weight (kg)
4200

Computerized
Yes

Automatic
Yes

PLC Control
Yes

Bar Feeder
No

Power Source
Electric

Power Consumption
8-12 kVA

Rigidity
High Rigidity Meehanite Casting Structure

Voltage
415 V / 50 Hz / 3 Phase

Motor
Spindle Motor 7.5/11 kW

Table Size
1000 x 500 mm

Spindle Speed
8000 rpm

Axial Choice
X / Y / Z

Dimension (L*W*H)
2500 x 2300 x 2400 mm

Feature
High Precision, Heavy Duty, Durable

Color
White

Control System
FANUC / Siemens / Mitsubishi options

Coolant System
Full Flood Coolant with Tank and Pump

T-Slot
5 (18 mm width, 90 mm pitch)

Operating Temperature
10-40C

Enclosure
Full Enclosure with Safety Interlocks

Chip Conveyor
Optional

Lubrication System
Automatic Centralized Lubrication

Positioning Accuracy
0.005 mm

Repeatability
0.003 mm

Rapid Traverse Rate (X/Y/Z)
36/36/24 m/min

Floor Space Required
3000 x 2800 mm

Travel (X/Y/Z)
850/510/510 mm

Spindle Taper
BT40

Relative Humidity
80%

Tool Magazine Capacity
24 Tools

Air Supply Required
5-7 kg/cm

TACHYON FT SERIES CNC VMC Trade Information

Minimum Order Quantity
1 Number

Delivery Time
1 Week

About TACHYON FT SERIES CNC VMC

To meet up focused demand of fastest drill-tap in Automobile, Surgical and Telecom industries Jyoti has developed high speed drill-tap center known as Tachyon Series. The series is equipped with fast electro-mechanical type integral pallet changer, fast tool changer and dynamic rapid of 60 m/min for axis. This moving column drill tap centers ideally fit for small and mid-sized components for continuous drilling-tapping operations with greater productivity offering.

Precision Meets Durability

Constructed with high-rigidity Meehanite cast iron, the FT SERIES ensures longevity and vibration dampening for superior machining accuracy. Its 0.005 mm positioning and 0.003 mm repeatability enable consistent, precise results for demanding industrial workpieces.

Advanced Automation For Productivity

With an automatic 24-tool magazine, automatic centralized lubrication, and PLC control, this VMC streamlines CNC machining. Choose between FANUC, Siemens, or Mitsubishi control systems to fit your workflow, and enjoy efficient chip removal with an optional conveyor.

Spacious Working Envelope

The VMC offers a large 1000 x 500 mm table, supporting workpieces up to 500 kg. With 850 mm X, 510 mm Y, and 510 mm Z travel, you'll have flexibility for parts of varying sizes. Five T-slots (18 mm) ensure secure clamping and adaptability to diverse setups.

FAQ's of TACHYON FT SERIES CNC VMC:

Q: How does the TACHYON FT SERIES CNC VMC enhance machining accuracy?

A: The VMC provides high precision with a positioning accuracy of 0.005 mm and repeatability of 0.003 mm, supported by a rigid Meehanite cast structure and advanced servo control for precise, consistent operation during industrial CNC machining tasks.

Q: What type of control systems are compatible with this VMC?

A: Operators can select from leading CNC control systems including FANUC, Siemens, or Mitsubishi. This flexibility allows integration into existing manufacturing environments or selection based on preferred programming and production requirements.

Q: When should an optional chip conveyor be used with this machine?

A: A chip conveyor is recommended for applications involving high volumes of material removal or continuous machining, as it efficiently removes chips from the enclosure, reduces cleaning time, and supports consistent cooling and lubrication.

Q: Where is the TACHYON FT SERIES CNC VMC manufactured and supplied?

A: This CNC vertical machining center is manufactured and supplied in India, accommodating industrial users who value local support, faster lead times, and region-specific service requirements.

Q: What is the process for tool changes and how many tools can be stored?

A: The VMC features an automatic tool magazine with a 24-tool capacity. During operations, tool changes are managed automatically and seamlessly via the machine's PLC, minimizing downtime and maximizing productivity.

Q: How is machine safety ensured during operation?

A: Operator safety is ensured by a full enclosure with integrated safety interlocks. These prevent the machine from operating if safety doors are open and protect against chip or coolant ejection during machining.

Q: What benefits does the automatic lubrication system provide?

A: The centralized automatic lubrication system ensures critical components are consistently lubricated, reducing maintenance needs, preventing wear, and extending the overall lifespan of the CNC VMC.
